Description

The Aqua-Jet Venturi (Clear)

The Aqua-Jet Venturi is a fantastic addition to a pond, as it injects air into your pond water to ensure adequate pond aeration without the need for an extra pump or power cable to run it.
The Venturi simply connects to the pond outlet and using the flow of water being produced from the pond circulation pump, will create a vacuum which will suck air in from the atmosphere and mix with the water inside the Venturi, making bubbles to increase the amount of oxygen dissolved in the pond water. This is beneficial for fish, plant life, biological filtration and reduces the build-up of dissolved toxic gasses.

The Venturi can be fitted to any pumped system. Depending on the output of your pump simply push the small funnel (low output pump) or large funnel (high output pump) into the rear of the main body.

The Venturi body has an outside diameter (OD) of 43mm, This is on both ends of the Venturi body. The Venturi will fit any fitting with an internal diameter of 43mm (ID). If you are planning to attach this to 43mm solvent weld pipe or fittings with an outside diameter of 43mm, the addition of a 43mm straight connector will be needed.(Please see our product archive)

Please Note: The Venturi is solvent weld, always use a non-toxic adhesive

The clear Venturi can act as a sight glass, allowing you to see water flow

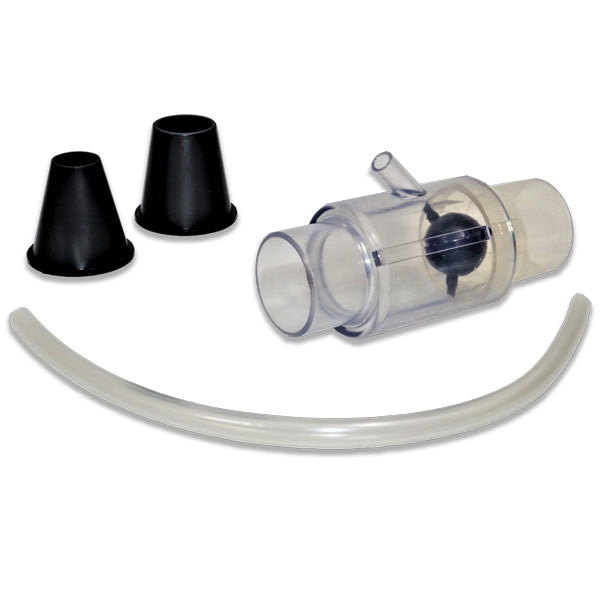

Supplied: Main Venturi Body, Displacement Ball, Air IntakeTube, Interchangeable High and Low Funnels and Instruction Leaflet

A VERY POPULAR AND SIMPLE WAY OF GETTING MORE AIR INTO YOUR POND FOR FREE. (once purchased)

Soft Nose

A Venturi soft nose is a protective rubber moulding that attaches to the front of your Venturi body. This makes sure when the main Venturi body is located in your pond none of the fish will come into contact with the front of your Venturi body there for not damaging them in anyway. The soft nose simply pushes onto the outlet of the Venturi.

Venturi Soft Nose is bought separately, purchase a Soft Nose please see our product archive
