Description

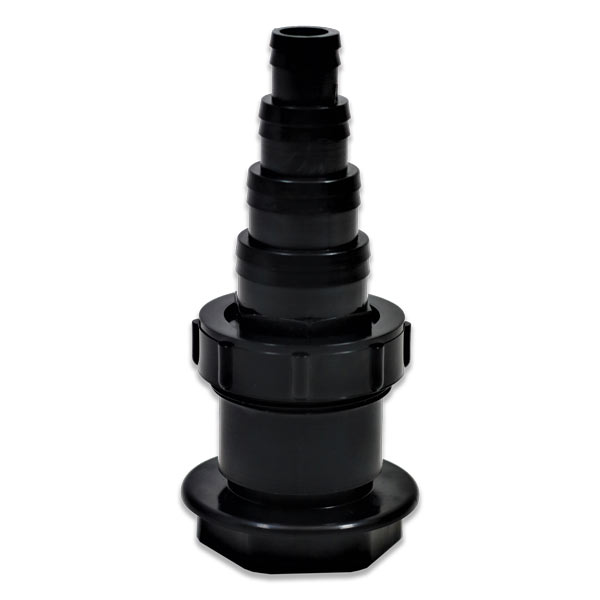

1.5″ BSP Female Thread to a 43mm Hosetail (Small)

This fitting is ideal for attaching to a threaded outlet/inlet of a pump when needing to convert it to flexible pipe/hose

This fitting has a 1.5” BSP female threaded. The fitting screws onto a 1.5” BSP male fitting, giving you a range of options for attaching flexible hose when building your system.

This fitting has been designed to enable the user to detach the hosetail from the threaded fitting. This eradicates any chance of the seal from the flexible hose to hosetail being broken. To remove the hosetail it is a simple case of unthreading the retaining nut that secures the hosetail in place this also makes cleaning or changing your pump easy.

The kit comes with everything seen in the photo ( 1.5” BSP threaded fitting, hosetail, retaining nut and “0”ring)

This hosetail can be used in-conjunction with flexible hose with an internal diameter (ID) of 20mm (3/4″) -25mm (1″) 32mm- (1.25″) 38mm-(1.5″) flexi hose.

Thread size- 1.5” BSP Female

Please note: This fitting has an internal diameter (ID) of 43mm,so it will only work with fittings/solvent weld pipe that had an outside diameter (OD) of 43mm (please view our pipe identification chart if you are unsure what pipe you require)

Understanding BSP Thread Sizes

Please view the chart supplied for a detailed conversion between BSP thread sizes to millimeters
