Description

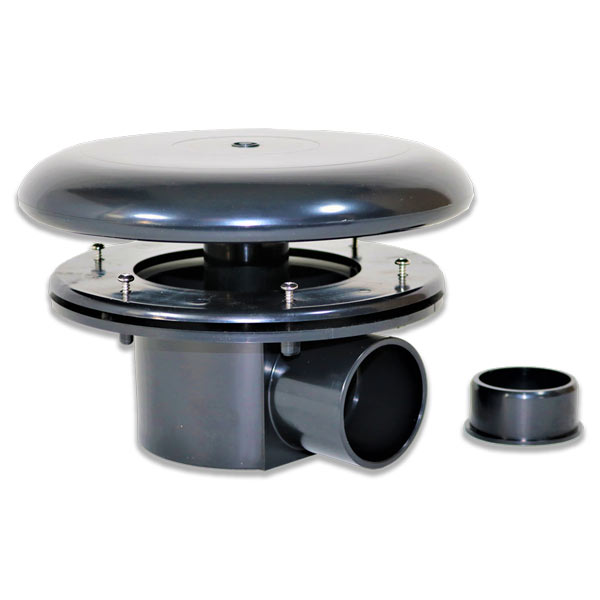

4”x 2” Bottom Drain and Dome

This Bottom Drain has been designed to work in conjunction with 56mm solvent weld pipe (please view our pipe identification chart for finding your correct pipe size)

The 4″x 2″ Bottom Drain and Dome are designed to give a high-efficiency low maintenance system when constructing a pond, as it draws debris and solids from the pond floor. Using a gravity feed system is more beneficial as the solids get fed straight into your filter system for removal and not liquidized into fine particles as within a  pond pump, the finer the particles the harder it is for your filter system to remove them, resulting in a poorer quality of water. The 56mm outlet on the 4″ x 2″ Bottom Drain gives a high flow of water which gives a good “draw” removing debris from across the bottom of the pond

Where to locate my bottom drain?

Bottom drains are located on the pond floor and should be positioned in the deeper areas of the pond. Bottom drains consist of a sump, which is set into the pond’s base and is attached to the pipe-work.

A pond can be built with multiple bottom drains along the floor, leaving no areas in the pond for sludge to accumulate.

Planning and Construction

As the pipe-work used in the construction of a gravity fed filter runs under the pond and is usually set in concrete, bottom drains should be considered at the outset of pond planning and installed as the pond is constructed. Bottom drain setups are much more efficient than having a pump situated in the pond, feeding a filter. Bottom drains can handle larger solids than most types of pond pumps, and are far less likely to block or become hampered by debris.

The sump is supplied with a flange ring, which can be screwed to its top lip. If the pond is liner-based, the liner should be sandwiched between the flange ring and the sump lip, and adhered with a non-toxic sealant, creating a water-tight seal. If the pond is constructed from concrete the flange ring is not required. The top of the sump should be set level with the pond’s final rendered layer. A gap of usually around 2 to 5cm is set between the top of the sump and the dome, and should stop smaller pond fish from entering the filter system.

To obtain a maximum flow-rate and reduce the build-up of debris in the pipe-work connecting the bottom drain to the filter, the pipes should run as directly as possible, and any bends should have a large curved radius.

My existing pond doesn’t have a Bottom Drain installed

If you have an existing pond that doesn’t have a bottom drain installed and you don’t want to undertake the huge task of completely rebuilding your pond from the ground up, don’t worry. eco-filtration has the answer.

eco-filtration stock the largest range of Weighted Suction Domes available for the koi market. A Weighted Suction Dome is a portable bottom drain. Offering the same great advantages as a Bottom Drain sump but without having to rebuild your pond. For more information on the Weighted Suction Dome range please see our product archive.

Bottom Drains Solvent Weld Sump

The sump is manufactured with a joining socket that has a 56mm internal diameter (ID) this will receive waste pipe with an outside diameter (OD) of 56mm (please refer to the pipe dimension and identification chart)

Reducing the Bottom Drain Sump

This 4”x 2” Bottom Drain kit will also be supplied with a 56mm-50mm reducing bush. This will reduce the sump socket to receive solvent weld pipe/fittings with an outside diameter (OD) of 50mm.

if the application of 43mm solvent weld pipe is needed eco-filtration stock a large range of reducing/joining bushes. We sell a 56mm – 43mm reducing socket purposely designed for the job. Converting your standard 2” waste (56mm) Bottom Drain Sump socket to receive 1.5” waste pipe (43mm) (please see our product archive for further details)

Supplied- 4″ x 2″ Bottom Drain Sump, Dome, Ring, High Adjuster Tube, 6 x Stainless Steel Screws, 56mm-50mm reducer , Instruction Leaflet

Have You Seen The Replacement Domes?

Also available to purchase separately is the aerated Bottom Drain dome. Upgrade your Bottom Drain dome to an aerated version at a later date.

• Single ring Aerator Dome

 Why An Aerated Bottom Drain?

The benefit of having an Aerator on your Bottom Drain is the rising air bubbles makes a uplift, this circulates the water towards the Bottom Drain making the Bottom Drain up to 30% more efficient at removing debris and waste from the pond. Not only does it help with the performance of the bottom drain but also aerates the water making for a healthier environment in your pond.

For more information please view our product archive
