Burtons Automatic Water Top Up for Ponds

Maintaining a consistent water level is an important part of keeping a pond system running efficiently, particularly on ponds fitted with gravity-fed drum filters.

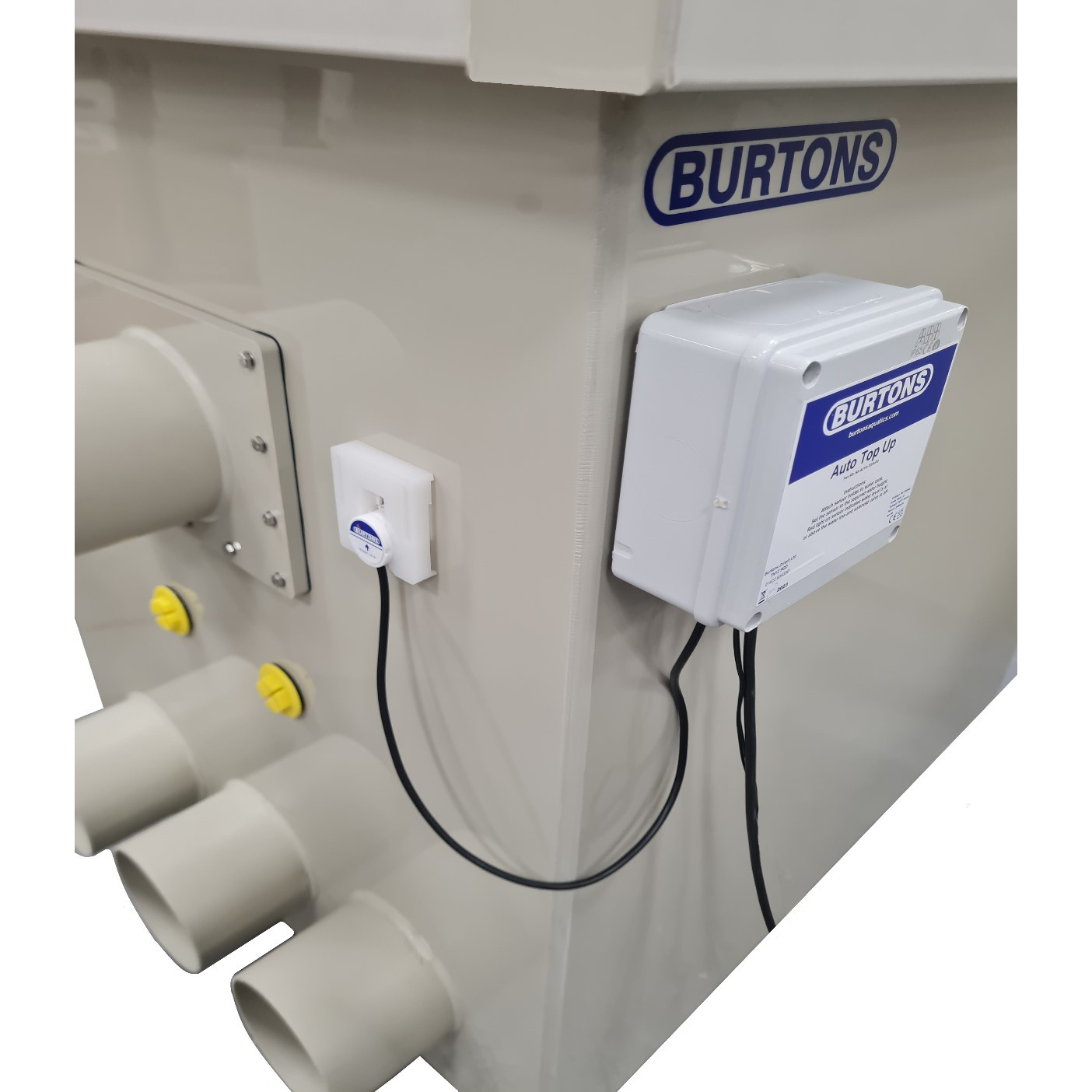

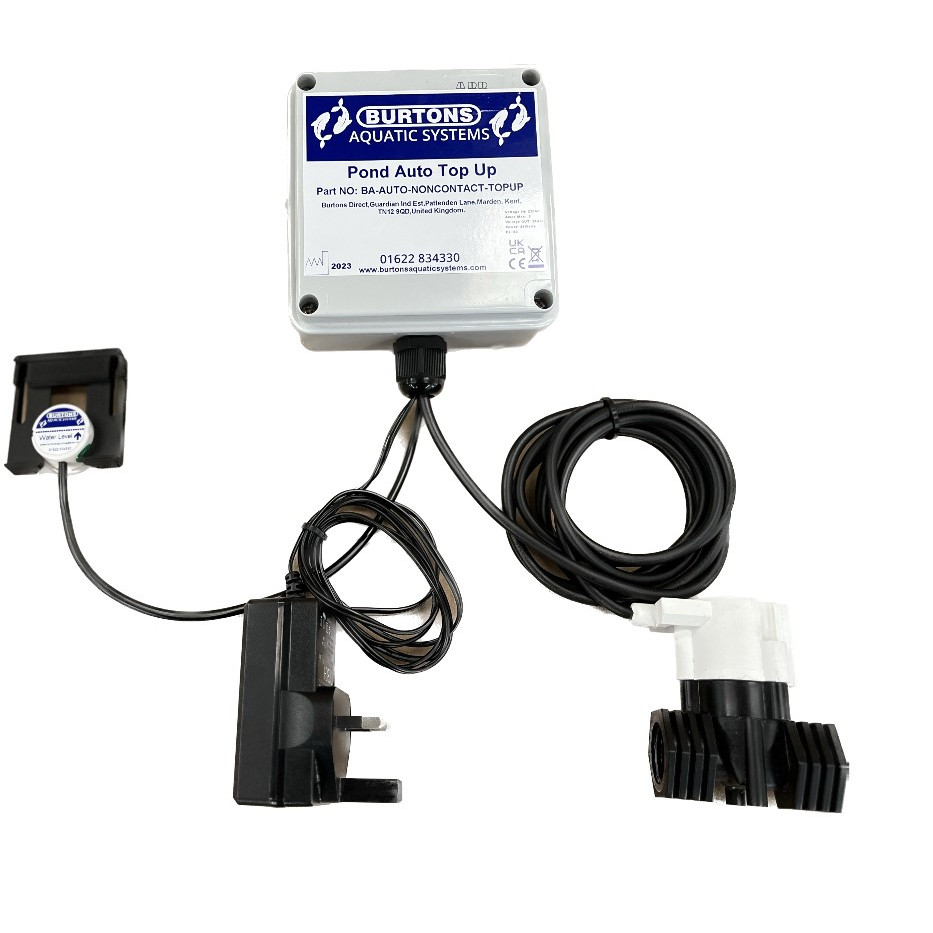

The Burtons Auto Top-Up System provides a simple and reliable way of automatically maintaining your pond’s water level without the need for manual topping up.

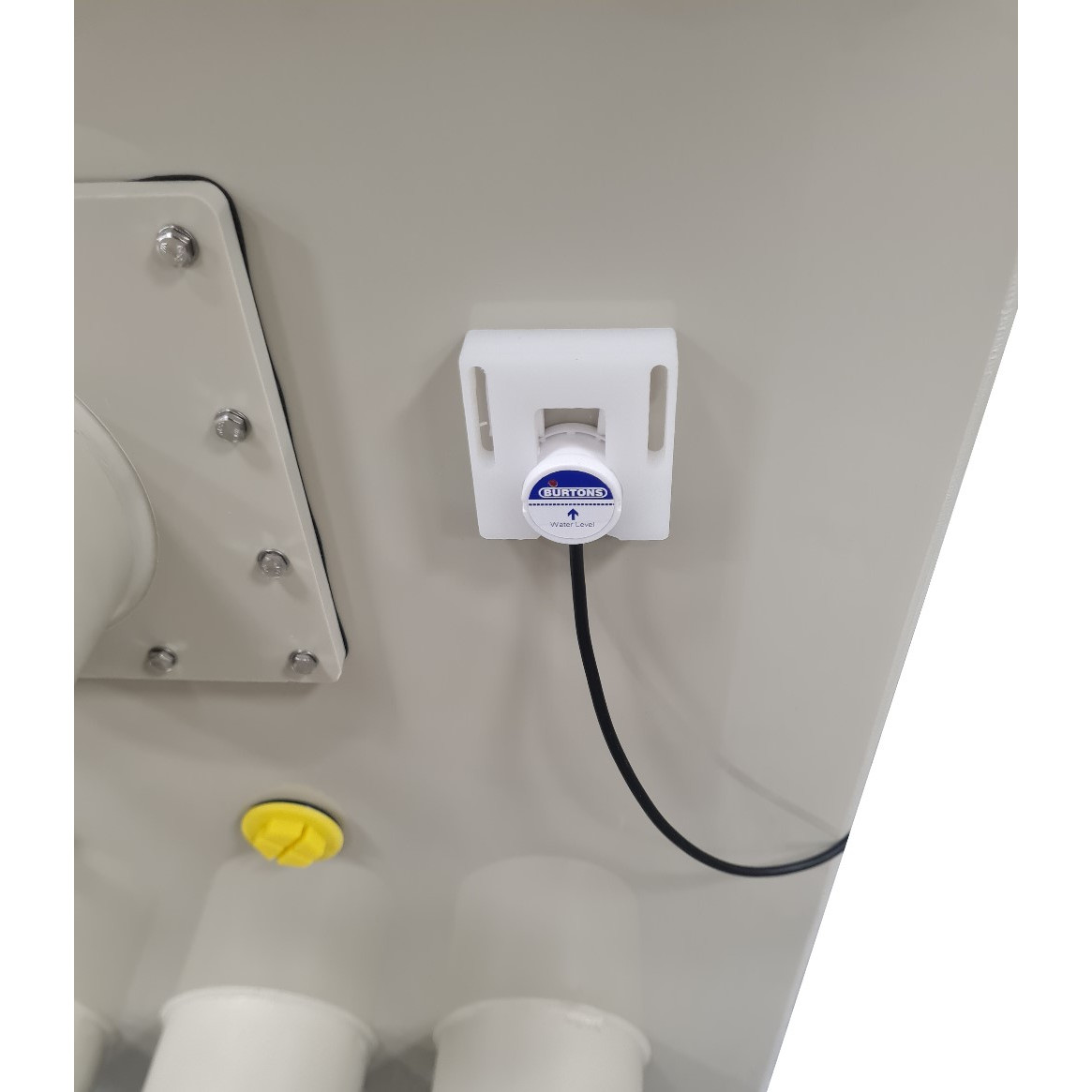

The system uses two level sensors to monitor the water level. When the pond level falls below the low-level sensor, the control box activates the solenoid valve, allowing mains water to enter the pond. Once the water reaches the high-level sensor, the solenoid valve automatically closes, stopping the water flow.

The system comes with a standard 20mm differential between the low and high sensors. This differential can be adjusted if required, allowing the system to be configured to suit different pond installations and requirements.

Key Features

• Automatically maintains a constant pond water level
• Ideal for ponds with gravity-fed drum filters
• 1/2″ BSP connections on both sides of the solenoid valve
• 1/2″ BSP solenoid valve
• 1.5m cable supplied with the solenoid valve
• 5m cable from the level sensor to the control box
• 3m mains power cable
• 20mm standard level differential
• Adjustable water-level differential
• Automatic activation and shut-off
• 1-year guarantee
